Note: Processing time can take between 1-3 business days. Delivery between 3-5 business days.

Our 1600W 24V complete kit comes with all the products and components you need to start harnessing, storing, and using the energy of the sun. This kit includes 8 high-efficiency 200W Monocrystalline panels with 9 busbars, 60A MPPT controller, 3000W 24V inverter, and two 200 AH 12V Lithium batteries. Install this on your RV or tiny home and start your solar adventure today!

The 1600 Watt Complete Kit Includes:

8 x 200W 12V Panels(RS-M200) -Max Power(Pmax): 200W -Maximum Power Voltage(Vmp): 20.4V -Maximum Power Current(Imp): 9.80A -Open Circuit Voltage(Voc): 24.3V -Short Circuit Current(Isc): 10.2A -Maximum System Voltage(Vmax): 1000VDC -Temperature Range: -40°C ~ 90°C -Max Series Fuse Rating: 15A -Weight: 26.5 lbs -Dimensions: 58.7 x 26.8 x 1.4 in	8 x Z Brackets -Ideal for rigid solar panels -Anodize aluminum -Easy to use -Compatible with all RICH SOLAR Solar panel -Firmly and safely mount solar panels to RVs, trailers, boats or yacht and any flat surface	1 x 60A MPPT Solar Charge Controller -Rated Battery Current: 60A -Rated Load Current: 20A -Max Solar Input Voltage: 150V -Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V -Charge Circuit Voltage Drop: ≤ 0.26V -Discharge Circuit Voltage Drop: ≤ 0.15V -Operating Temperature: -31 °F to 113 °F -Max Terminal Size: 4AWG -Overall Dimension: 11.2 x 8.1 x 4.0 in -Net Weight: 7.9 lb	2x 200AH 12V Lithium Battery -Operating Voltage: 12.8V -Capacity: 200 Ah -Energy: 2560 Watt Hours -Charge Voltage Range(Max 14.6V): 14.4V - 14.6V -Continuous Charge Current: 100A -Continuous Discharge Current: 200A -Over Voltage Shutdown: 15.6 +/- 0.2V -Discharge Cut-off Voltage: 8V =/- 0.5V Self Discharge (stored at 50% SOC): <3%/month -Waterproof: IP65	1 x 2 AWG Battery Interconnect Cable -100% Pure Copper -Lugs: 5/16" -2AWG -2 FEET
1 x 3000W 24V Inverter -Input: DC 12V -Output: 100 - 127V AC 60HZ Output Power: 3000W Surge Power: 6000W Output Waveform: pure sine wave with remote control function with LCD display or LCD remote controller	1 x 30' 10 AWG Solar Cable Set (Panel to Control) -Wire Gauge: 10AWG -Length: 30 feet -Rating Voltage: DC: 1.8KV / AC: 0.6~1KV -Waterproof: IP65 -Fire Rated: IEC60332-1 -Insulation Material: TPE -Contact Material: Tinned Copper -Temperature Range: -40°C ~ +90°C -Service Life: > 25 years	1 x 10' 4 AWG Battery Cable -100% Pure Copper -Lugs: 5/16" -2 AWG -4 Feet	1 x 30A Inline Fuse Holder -Rated Current: 10A/15A/20A/30A -Degree of Protection: IP2*/IP67 -Rated Voltage: 1000V DC -Flame Class: UL94 - V0 -Test Voltage: 6000V(50Hz,1 min) -Safety Class: II -Overvoltage Category: CATIII -Suitable Connector: Solar Connector	1 x Y Branch Parallel Adapter -Rated Current: 30A -Maximum Voltage: 1000VDC -Waterproof: IP67 -Wire Range: 10AWG, 12AWG -Insulation Material: TPE/PPO -Inner Material: Tinned Copper -Temperature Range: -40°C ~ +90°C -Safety Degree: II

High-Efficiency Solar Panel

With the highest grade monocrystalline solar cells for optimal output, our 100-watt panel is treated with an anti-reflective coating to maximize light absorption.

Simple Installation

Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades, or additions simple and easy… just plug in and go!

Reliable and Convenient

The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.

25-Year Output Warranty

Buy with confidence knowing that your solar investment will last for the long haul.

Monocrystalline Solar Panels

MPPT Solar Charge Controller

Portable Solar Generators

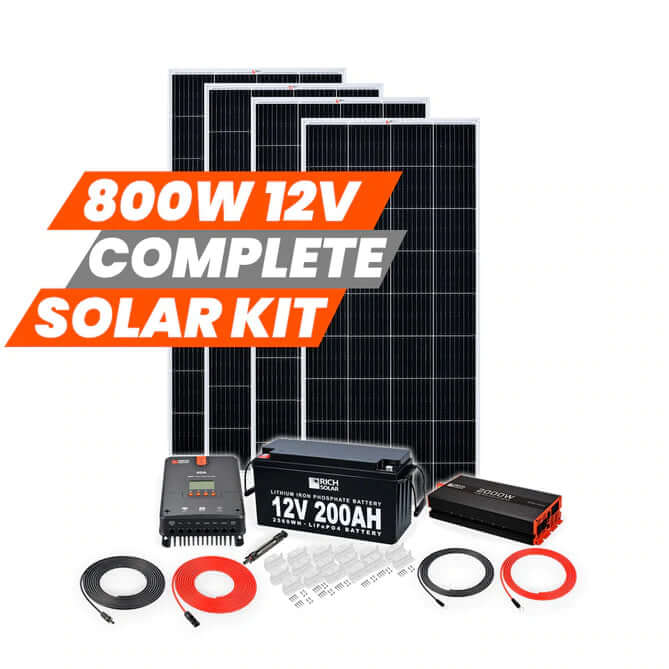

Rich Solar 800 Watt Complete Solar Kit

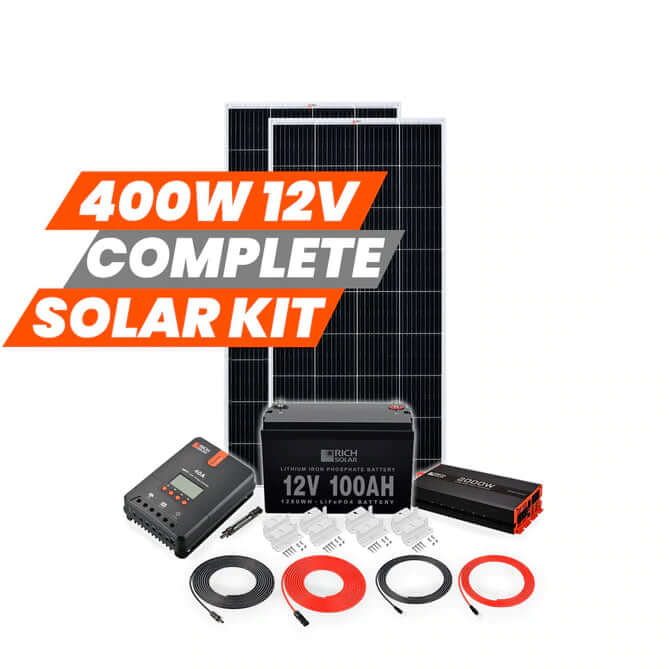

Rich Solar 400 Watt Complete Solar Kit
