Rich Solar 200 Watt Solar Panel Kit with 20A MPPT Controller
Note: Processing time can take between 1-3 business days. Delivery between 3-5 business days.

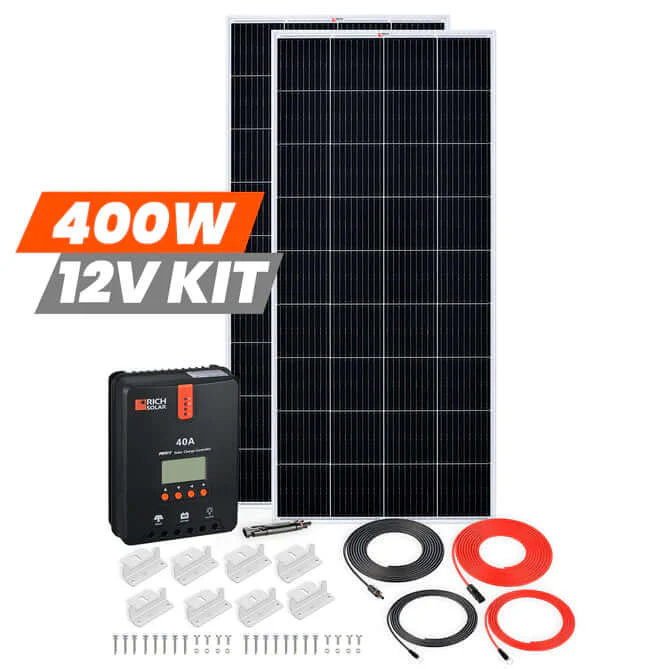

Our most popular 12V kit! This 400W kit contains 2 of our high-efficiency 200W Monocrystalline panels with 9 busbars and our 40A MPPT controller that can be expanded to 600W on a 12V system. This kit can be paired with our 200AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!
Package Includes:
 2 x 200 Watt Monocrystalline Solar Panel -Maximum Power(Pmax): 200W -Maximum Power Voltage(Vmp): 20.4V -Maximum Power Current(Imp): 9.80A -Open Circuit Voltage(Voc): 24.3V -Short Circuit Current(Isc): 10.2A -Maximum System Voltage(Vmax): 1000VDC -Temperature Range: -40°C ~ 90°C -Max Series Fuse Rating: 15A -Weight: 26.5 lbs -Dimensions: 58.7 x 26.8 x 1.4 in |
 1 x 40A MPPT Solar Charge Controller -Rated Battery Current: 40A -Rated Load Current: 20A -Max. PV Input Short Current: 50A -Max. Battery Voltage: 32V -Max Solar Input Voltage: 100VDC -Charge Circuit Voltage Drop: ≤ 0.26V -Discharge Circuit Voltage Drop: ≤ 0.15V -Working Temperature: -35°C to +45°C -Max Terminal Size: 8AWG -Rated Load Current: 10% to 90% NC -Overall Dimension: 9.37 x 6.81 x 2.85 in -Net Weight: 4.41 lb |
-Service Life: >25 years |
|---|---|---|
 1 x 10' #8 Gauge Battery Cable -Length: 10 feet -AWG: 8 -Rating Voltage: 600/1000V -Temperature: -40°F to +185°F |
 2 x Mounting Z Bracket (One set of 4) -Ideal for rigid solar panels -Anodize Aluminum -Easy to use -Compatible with all RICH SOLAR solar panels -Firmly and safely mount solar panels to RVs, Trailers, boats or yachts and any flat surface. |
 1 x 15A Inline Fuse Holder with Fuse -Rated Current:10A/15A/20A/30A -Degree of Protection: IP2*/IP67 -Rated Voltage: 1000V DC -Flame Class: UL94-VO |
High-Efficiency Solar Panel
With the highest grade monocrystalline solar cells for optimal output, our 100-watt panel is treated with an anti-reflective coating to maximize light absorption.
Simple Installation
Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades, or additions simple and easy… just plug in and go!
Reliable and Convenient
The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp-hours. provide peace of mind by protecting your system from overcharging.
25-Year Output Warranty
Buy with confidence knowing that your solar investment will last for the long haul.
200 Watt Solar Panel Specifications
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 20.4V |
| Maximum Power Current(Imp) | 9.80A |
| Open Circuit Voltage(Voc) | 24.3V |
| Short Circuit Current(Isc) | 10.2A |
| Weight | 26.5 lbs |
| Dimensions | 58.7 x 26.8 x 1.4 in |
| Warranty | 25 years output warranty |
How Efficient are Monocrystalline Solar Panels
MPPT Solar Charge Controllers by RICH SOLAR
