BLUETTI AC200MAX + 2*B230 + 3*PV200 Battery Backup for Home

Product image 1
Product image 2
Product image 3

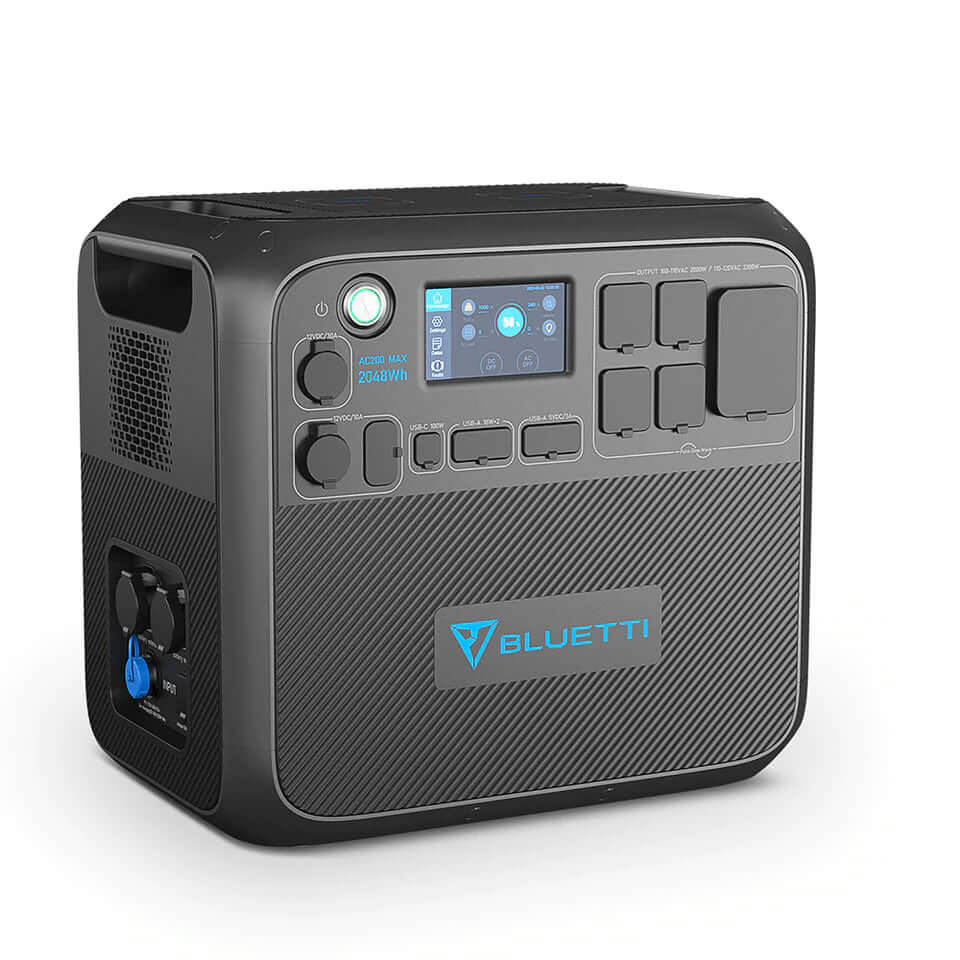

Product image 4

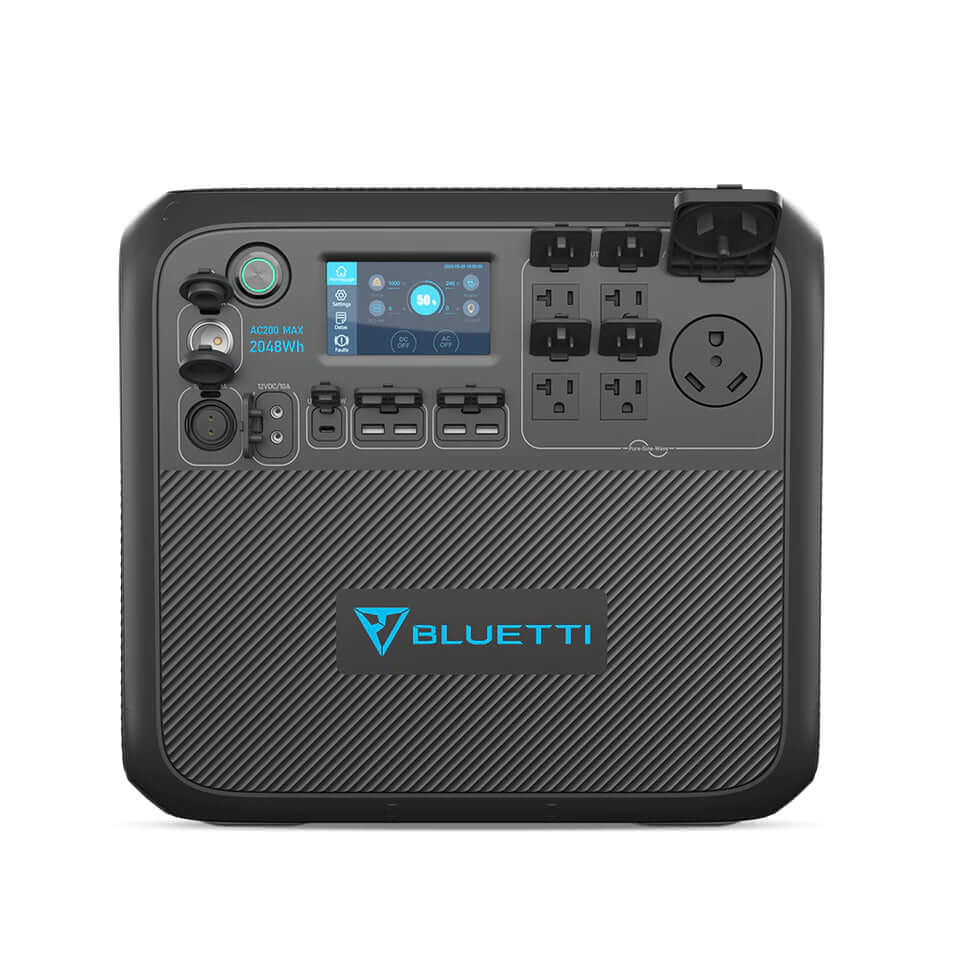

Product image 5

BLUETTI AC200MAX + 2*B230 + 3*PV200 Battery Backup for Home

BLUETTI AC200MAX + 2*B230 + 3*PV200 Battery Backup for Home

Note: 1 to 3 working days to process the order, 7-10 days estimated delivery date.

Specs:

  • 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
  • 2,048Wh Capacity
  • LiFePO4 Battery with 3,500+ Life Cycles to 80%
  • Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
  • 900W Max. Solar Input
  • 1300W Max. Fast Dual Charging (Solar + AC Adapter)
  • Smart Control & Monitor in BLUETTI App

SMALL CHANGE, HUGE LEAP

The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.





LESS TO SPEND, MORE TO LOVE

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!


GET CHARGED IN ANWAY YOU PREFER

The AC200MAX allows up to 900W of solar input and 400W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every Bluetti battery module has their own input port for AC adapters, you’ll get another 400W of input capability with every module added (Up to two for the AC200MAX).


INCOMPARABLE OUTLET VERSATILITY

With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.



Download AC200MAX User Manual Here
Download B230 User Manual Here
Download PV200 User Manual Here

Specifications for AC200MAX



BATTERY INFO

 Capacity:

 2,048Wh (51.2V, 40Ah)

Type:

 LiFePO4 (Lithium Iron Phosphate)

Life Cycles:

 3,500+ Cycles to 80% Original Capacity

Shelf-life:

 Recharge to 80% Every 3-6 Months

Management System:

 MPPT Controller, BMS, etc



Output
AC Outlets:
  4 x 120V/20A Outlets
1 x 120V/30A NEMA TT-30
2200W In Total
Inverter Type:
Pure Sine Wave
Surge Power: 4800W
USB-C Port: 2 x 5V/3A USB-A
2 x 18W USB-A
12V DC Outlets: 1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.
Wireless Charging Pad: 2 x 15W Max. (For Each)



Input

AC Adapter Input: 400W.
Solar Input:
900W Max., VOC 10-145VDC, 15A
Car Input: 12/24V from Cigarette Lighter Port
Max Input: 1,300W, with AC+Solar Input



Recharge Time
AC Adapter (400W):
  ≈5.5~6 Hours
Solar (900W): ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours
AC Adapter + Solar (1300W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Dual AC Adapters (800W):
≈3~3.5 Hours (Extra adapter is REQUIRED)



General
Scalability:  Expandable w/ Up to 2 x B230 or 2 x B300
Pass-through Charging: Yes
Weight: 61.9lbs (28.1kg)
Dimensions (LxWxD): 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)
Operating Temperature: -4-104℉ (-20-40℃)
Storage Temperature:
 14-113℉ (-10-45℃)
Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65
Warranty: 24 Months



AC200MAX Tutorial


In The Box



AC200MAX Touchscreen Guide



Specifications For B230



BATTERY INFO
Capacity: 2048Wh
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Lifecycle: 3500+(to 80%); 6000+(to 50%)
Shelf-Life: Charge Every 3-6 Months

PORTS
AC Input: 500W
Solar Input: Max 10A(Via BLUETTI D050S)
Car Input: 12/24V,8.2A(Via BLUETTI D050S)
DC Output: 1*12V/10A Cigarette Lighter Port
USB Output: 1*18W USB-A   1*100W USB-C
Environmental Requirements: Storage Temperature: -20℃ to 40℃ (-4℉ to 104℉)
Charge Temperature: 0°C to 40℃ (32°F to 104℉)
Discharge Temperature:-20°C to 40℃(-4°F to104℉)

GENERAL
Weight: 21.8Kg/48lbs
Dimensions (LxWxD): 16.5*11*8.9 inch
Operating Usage Temperature: 0°C to 40℃ (32°F to 104℉)
Certification: CEC, DOE, FCC, QC3.0, CA Prop 65
Warranty: 24 Months



How-to Videos

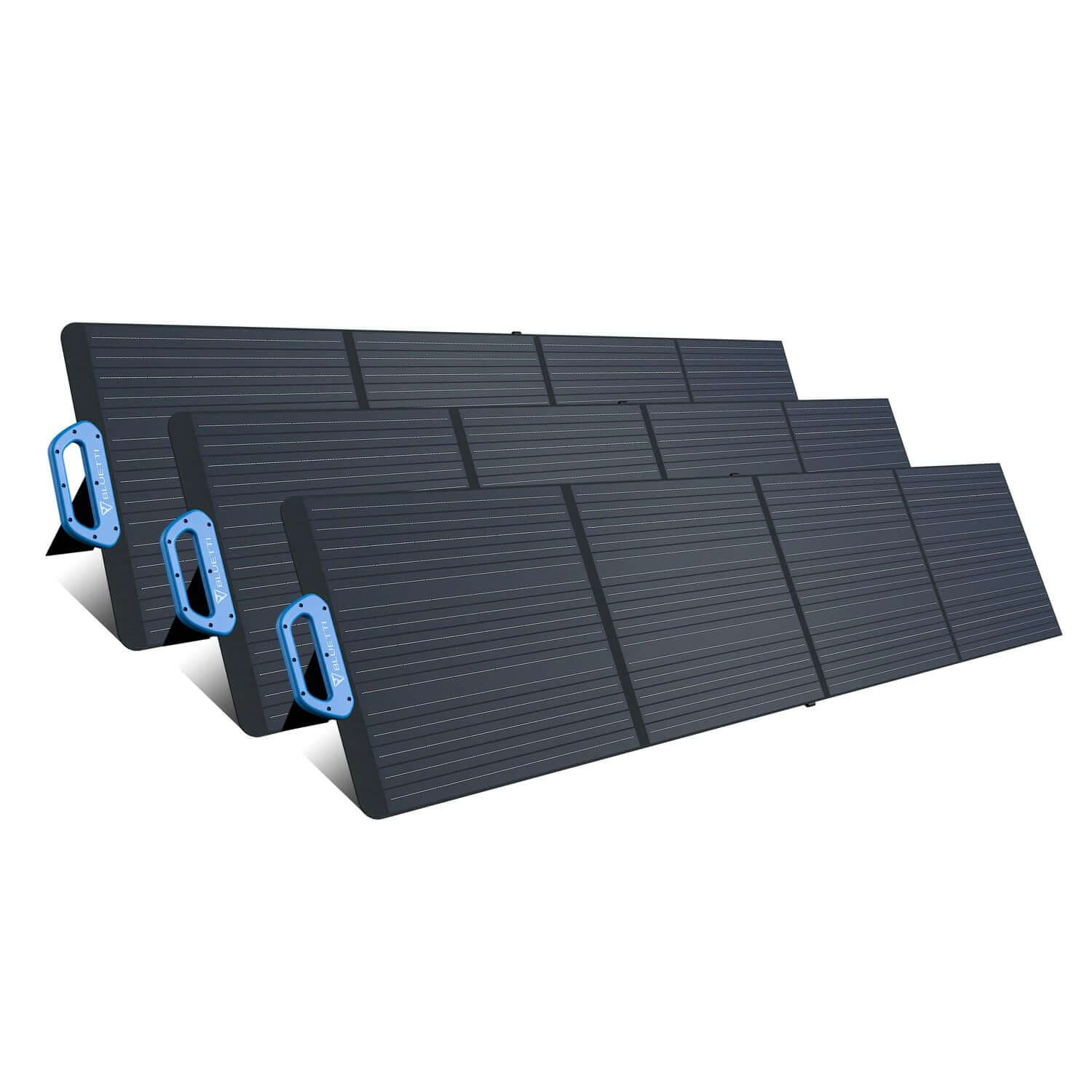

Specifications For PV200



Peak Power (Pm): 200W
Solar Cell Lamination: ETFE (Ethylene tetrafluoroethylene)
Cell Efficiency: Up to 23.4%
Voltage at Max Power (Vmp): 20.5V
Current at Max Power (Imp): 9.7A
Open Circuit Voltage (Voc): 26.1V
Short Circuit Current (Isc): 10.3A
Operating Temperature: 14-149℉ (-10-65℃)
Best Working Temperature: 77℉ (25℃)
Connector: Standard MC4 Connector
Cable Length: 118in (3m)
Dimensions (Unfolded): 23.2 × 89.2in (59 × 226.5cm)
Dimensions (Folded): 23.2 × 24.8inch (59 × 60cm)
Weight: 16.1lbs (7.3kg)
Warranty: 24 Months



Package

-Solar Panel

-User Manual

Frequently Asked Questions:



Q1: How Many B230 or B300 battery modules can connect with the AC200MAX?
A: 2 B230/B300. (Battery expansion cables are sold separately.)

Q2: Can the B230 battery module be used alone?
A: Yes, it also provides a standalone power source with a 100W USB-C, a USB-A, and a 12V DC output port.

Note: The total power of your devices should NOT exceed 700W

Q3: How can I charge B230?
A:
1. 500W AC Adapter(sold separately)

2. Car cigarette lighter output or solar panels(BLUETTI D050S DC charging enhancer is sold separately.)

Q4: Does AC200MAX support split phasing bond?
A: No.

Q5: Can AC200MAX be controlled remotely via APP?
A: You can use BLUETTI App to monitor and control the AC200MAX.

Q6: How can I charge AC200MAX?
A:
1. 500W Adapter: 4.6~5.1hrs
2. Dual Adapters(1000W in total): 2.5~3.0hrs
3. Solar Panel(900W): 2.8~3.3hrs; Open circuit voltage:10-145V
4. Adapter+Solar Panel(1400W): 2~2.5hrs
5. 12V/24V Car Cigarette Lighter
6. 12V/24V Lead-acid Battery
7. Generator

Q7: Does AC200MAX have UPS function?
A: No.



Q8: Can AC200MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?
A: YES.

Q9: What's the solar charging controller mode? MPPT or PWM?
A: MPPT.

Q10: Can I use a third-party solar panel?
A:
Yes, as long as the specs of solar panels you're using fall in below range:
Total open-circuit voltage(OCV): 10-145V
MAX Input Current: 12A
With MC4 connectors

Q11: Can you ship the AC200MAX to Puerto Rico, Hawaii, and Alaska to deliver?
A:

Can not. Because the package exceeds the weight limit of the logistics company.
