• 700W AC Pure Sine Wave Inverter (1,400W Surge)
• 537Wh Capacity
• LiFePO4 Battery with 2,500+ Life Cycles to 80%
• 12 Outputs For Multiple Devices
• 6 Ways to Recharge (AC/Solar/Car/Generator/AC+Solar/Dual AC)
• 200W Max. Solar Input
• 400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously)
• Eco-friendly/Gas free/Quiet/Cost-effective

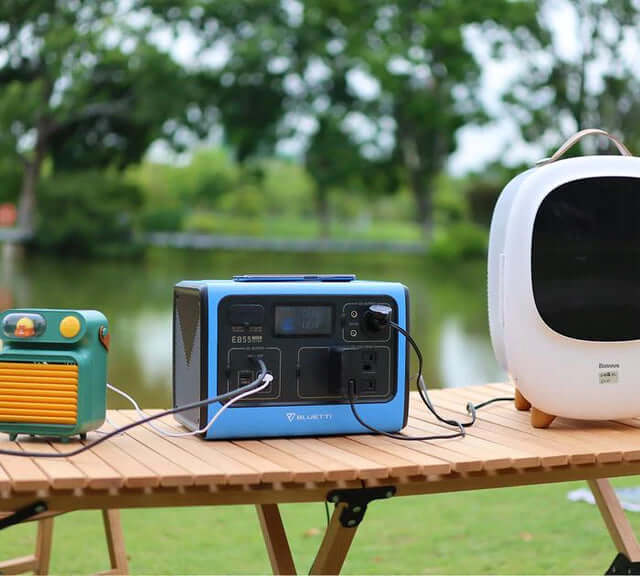

Meet all your need during camping

Multiple DC & AC Outputs, Versatile Recharging

EB55 could run 13 devices simultaneously. From smartphone to mini-fridge, you can power all your electronics with it. Especially, there is one piece of the wireless charging pad.

An ideal solution for an outdoor trip

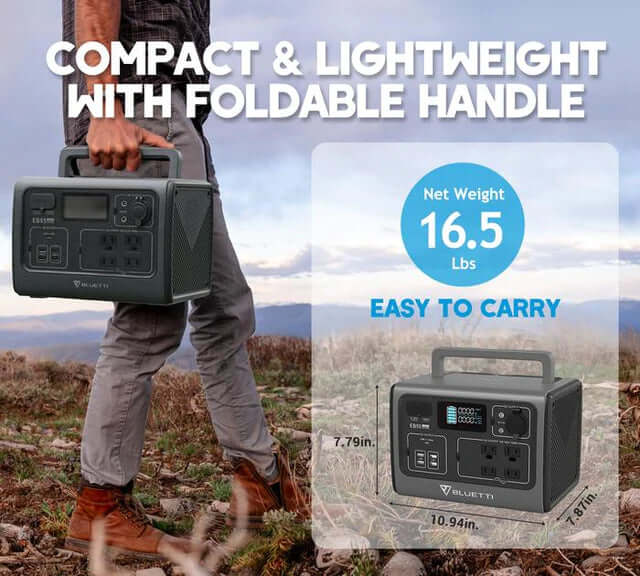

EB55 power station wights 16.5Lbs. With a handle, you can take it anywhere you want to go. A small energy solution with big performance.

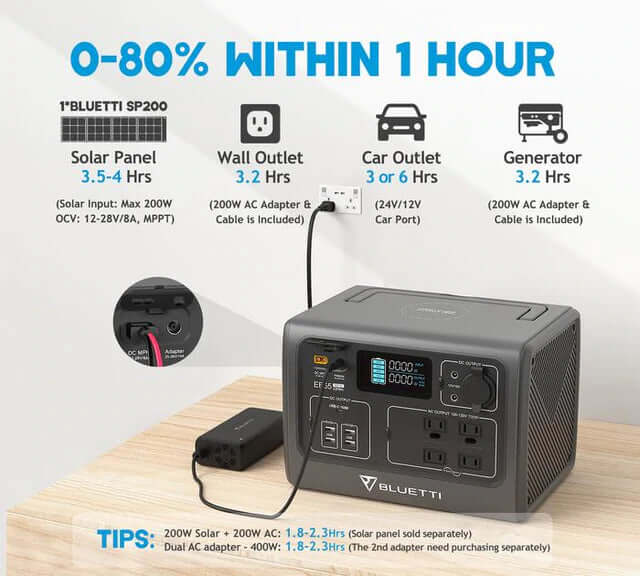

Get Charged In any way You Prefer

EB55 power station supports 4 ways to recharge, including a wall outlet, generator, car outlet, and solar panels. Along with a reliable PV panel, it’s a fantastic way to support you during your camping.

Incomparable Outlet Versatility

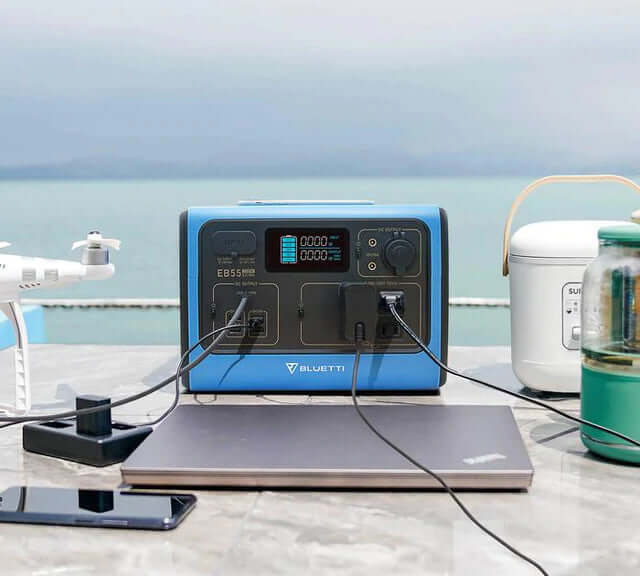

The EB55 is easy to carry, recharges quickly, and performed flawlessly with your drones, phones, laptop, and astronomical telescopes.

Download  EB55 User Manual Here

Download PV120 User Manual Here

Specifications

Battery Info

Capacity:	537Wh (22.4V, 24Ah)
Type:	LiFePO4 (Lithium Iron Phosphate)
Life Cycles:	2,500+ Cycles to 80% Original Capacity
Shelf-life:	20.5VRecharge to 80% Every 3-6 Months
Management System:	MPPT Controller, BMS, etc.

Output

4*AC Outputs:	100-120V, 700W (1400W Surge) , 50Hz / 60Hz, Pure Sine Wave

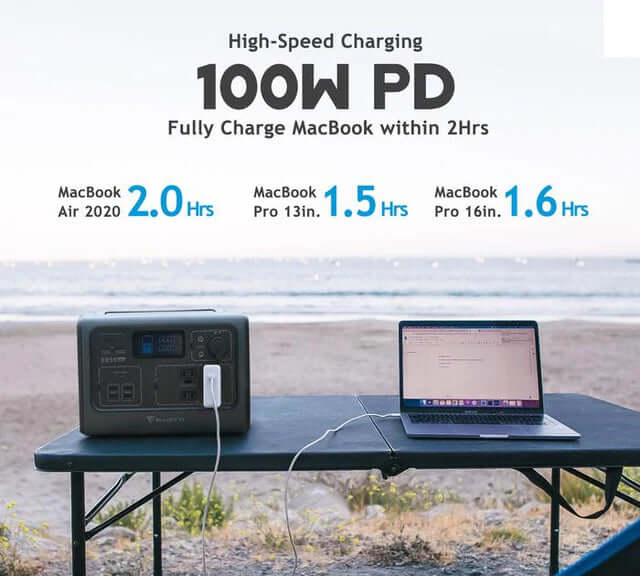

1*USB Type-C Outputs:	5V, 3A / 9V, 3A /12V, 3A / 15V, 3A / 20V, 3A / 20V, 5A (100W Max)
1*Car Port:	DC Regulated 12V, 10A
4*USB-A Outputs:	5V, 3A
2*DC Outputs:	12V, 10A, 5.5mm x 2.1mm
1*Wireless Charging Pad:	12V~28V, 200W Max



Input

AC Adapter Input:	200W Max.
Solar Input:	200W Max., VOC 12-28V, 8A
Car Input:	12/24V from Cigarette Lighter Port
Max Input:	400W, with AC+Solar Input



Recharge Time

AC Adapter (200W): ≈3 Hours Solar (200W): ≈3 Hours (With prime sunshine, ideal orientation, and low temperature) 12V/24V Car Outlet (100W/200W): ≈6.1 or 3.4 Hours AC+ Solar (400W): ≈1.8~2.3 Hours (With prime sunshine, ideal orientation, and low temperature) Dual AC (400W): ≈1.8~2.3 Hours (Extra adapter is REQUIRED)

General

240V Split Phase Bonding: No. Scalability: No. Pass-through Charging: Yes Weight: 16.5lbs (7.5Kg) Dimensions (LxWxD): 10.94 x 7.87 x 7.79in (27.8 x 20 x 19.8cm) Operating Temperature: -4-104℉ (-20-40℃) Storage Temperature: 14-113℉ (-10-45℃) Certifications: UL, CEC, DOE, FCC, CA Prop 65 Warranty: 24 Months

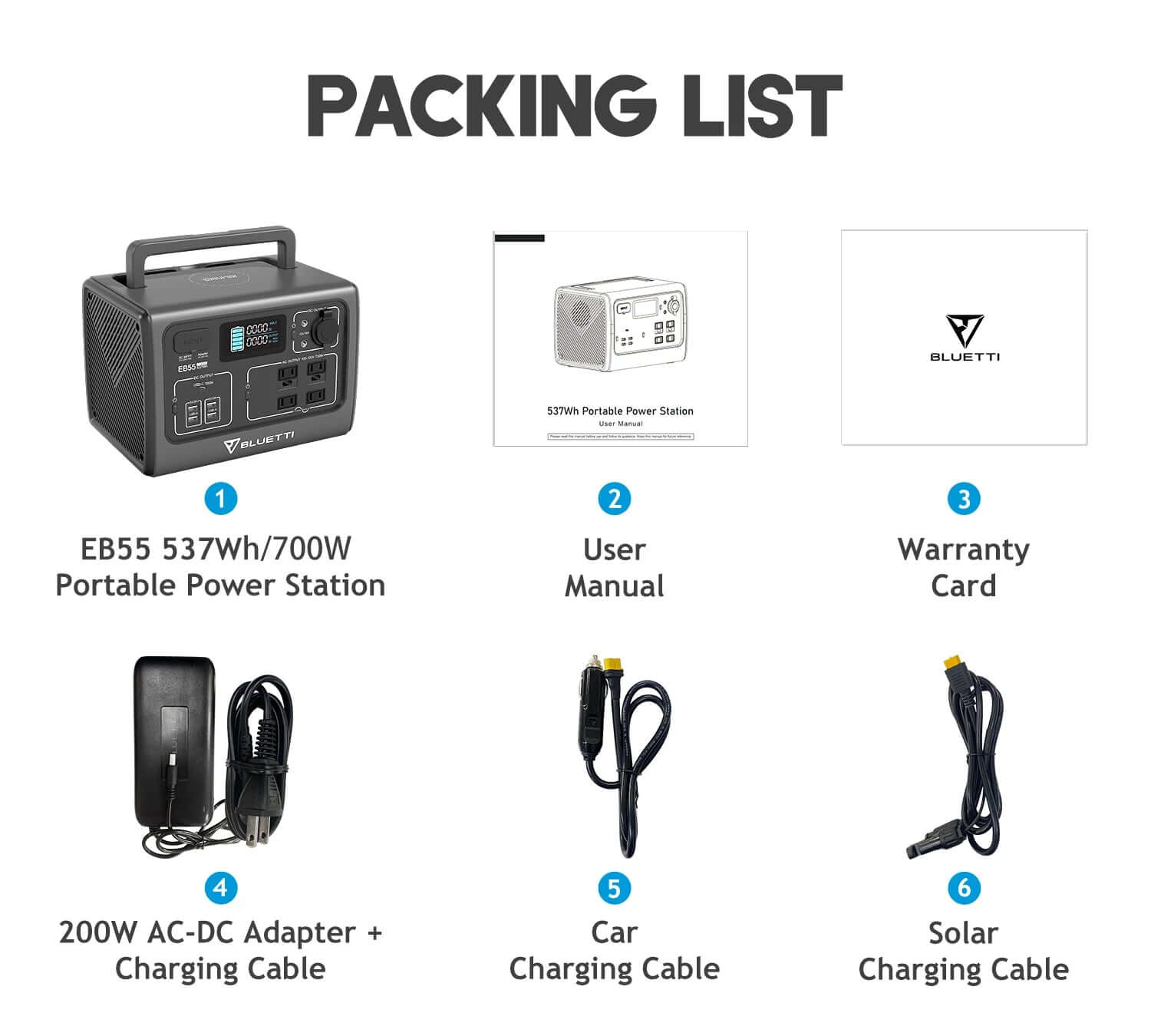

In The Box

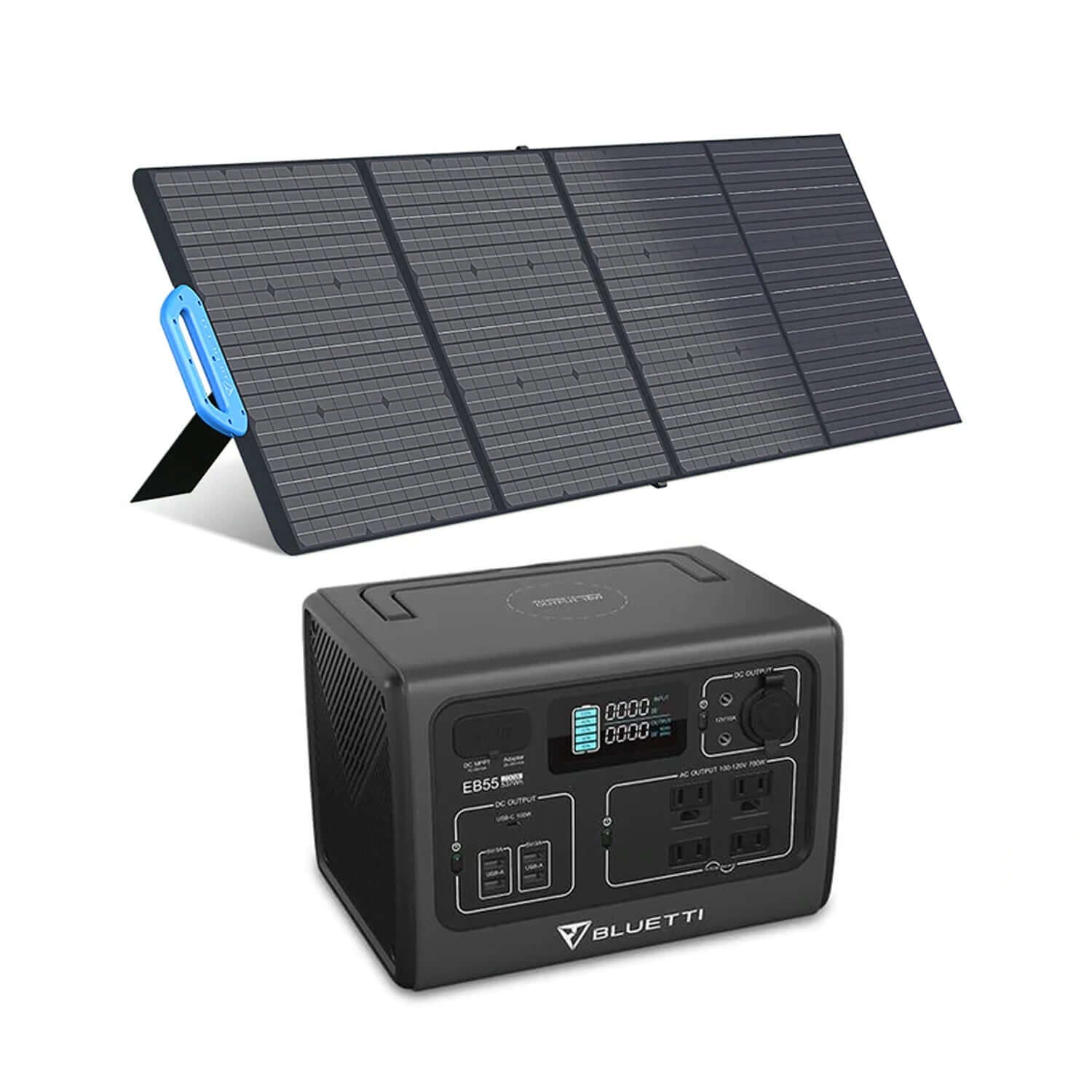

Specifications for PV120

Peak Power (Pm): 120W Solar Cell Lamination: ETFE (Ethylene tetrafluoroethylene) Cell Efficiency: Up to 23.4% Voltage at Max Power (Vmp): 19.6V Current at Max Power (Imp): 6.1A Open Circuit Voltage (Voc): 24.4V Short Circuit Current (Isc): 6.43A Operation Temperature: 14-149℉ (-10-65℃) Best Working Temperature: 77℉ (25℃) Cable Length: 118in (3m) Dimensions (Unfolded): 21 × 65in (53.3 × 165.2cm) Dimensions (Folded): 21 × 18.5in (53.3 × 47cm) Weight: 12.57lbs (5.7kg) Warranty: 24 Months Connector: Standard MC4 Connector



 Package

-Solar Panel

-User Manual

Frequently Asked Questions:

Q1: What devices can be charged/powered by BLUETTI EB55?

A: EB55 can handle most of your devices under 700W.

Note: For some devices with motor/compressor, the initial start-up power maybe 2-4 times the rating, which may trigger overload/overcurrent protection.

Q2: How long will EB55 power my device?

A: Working time (estimation) = 537Wh* 0.85 / operating power of your device. (0.85=Conversion Rate)

Note: The actual working time may vary under different situations.

Q3: Can I use third-party solar panels?

A: Yes, as long as the specs of solar panels you're using fall in below range: Total open circuit voltage(OCV): 12-28V MAX input current: 8A With MC4 connectors Highly recommended for the best performance: 1) 1*BLUETTI PV200 (200W), 0-100% in 4-4.5 hours. 2) 1*BLUETTI PV120 (120W), 0-100% in 6-6.5 hours.

Q4: Can it charge and discharge simultaneously?

A: Yes. It is not highly recommended for better battery protection, but with the premium built-in LiFePO4 battery and the advanced Battery Management System, please rest assured and use it the way that better suits your needs. But please note that this unit cannot be used as a UPS.
