Features

• Automatically detects 12V/24V/36V/48V DC system voltages.
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• Features diverse load control; also capable of charging over-discharged lithium batteries.

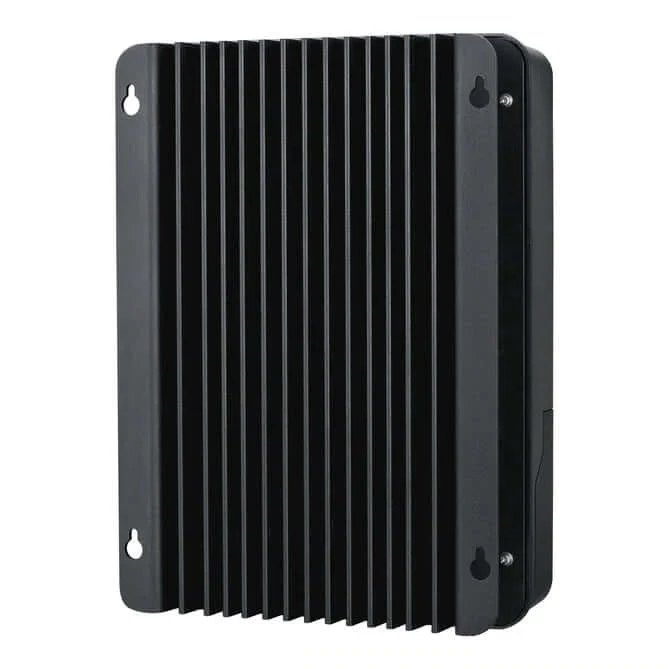

• Die-cast aluminum design allows for efficient heat dissipation.
• RS232 port to communicate with BT-1 Bluetooth module.

Specifications

• Rated Battery Current: 60A
• Rated Load Current: 20A
• Max Solar Input Voltage: 150V
• Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
• Charge Circuit Voltage Drop: ≤ 0.26V
• Discharge Circuit Voltage Drop: ≤ 0.15V
• Operating Temperature: -31 °F to 113 °F
• Max Terminal Size: 4AWG
• Overall Dimension: 11.2 x 8.1 x 4.0 in
• Net Weight: 7.9 lb

Solar Charge Controller Comparison
Rated Battery Current:	20A	40A	60A
Rated Load Current:	20A	20A	20A
Max. PV Input Short Current:	25A	50A	75A
Max Battery Voltage:	32V	32V	32V
Max Solar Input Voltage:	100 VDC	100 VDC	150 VDC
Net Weight:	3.08 lb	4.41 lb	7.9 lb
Discharge Circuit Voltage Drop:	≤ 0.15V	≤ 0.15V	≤ 0.15V
Overall Dimension:	8.27 x 5.94 x 2.34in	9.37 x 6.81 x 2.85 in	11.2 x 8.1 x 4.0 in
