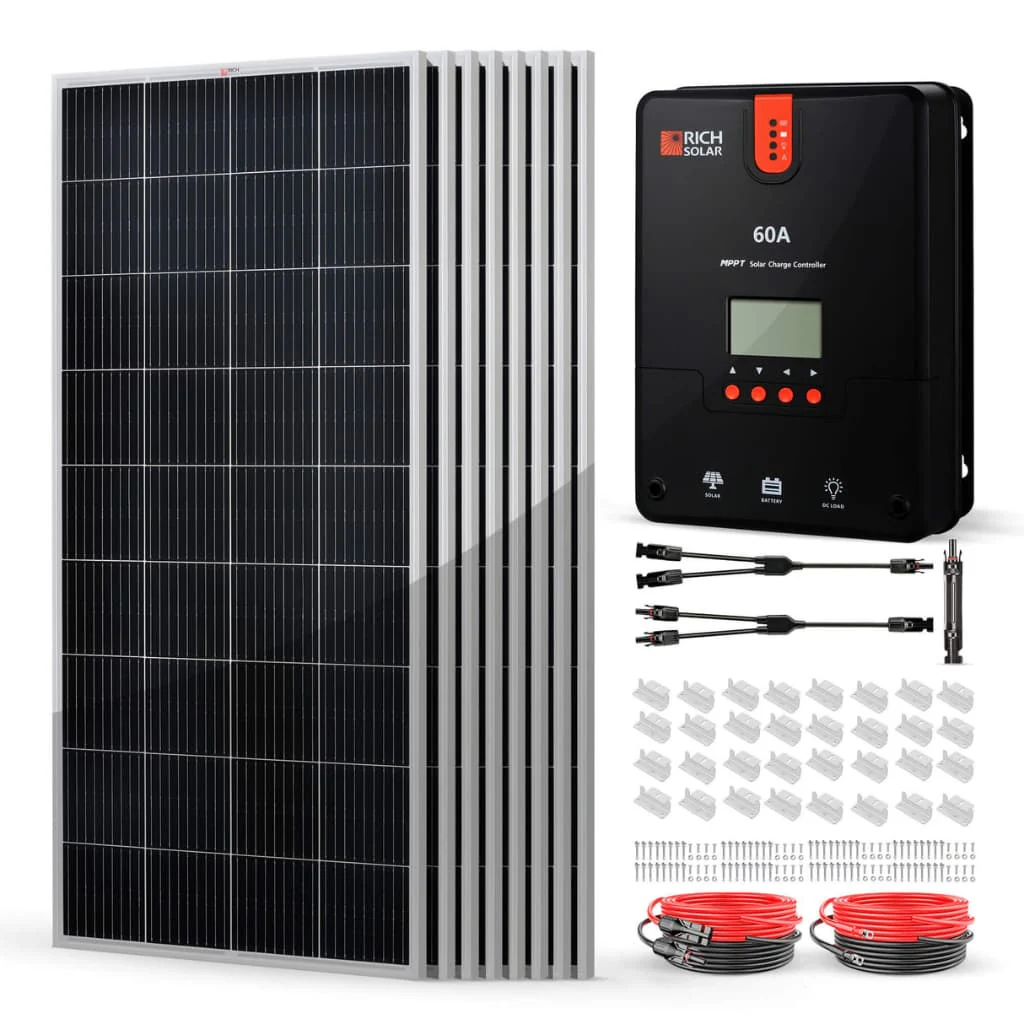

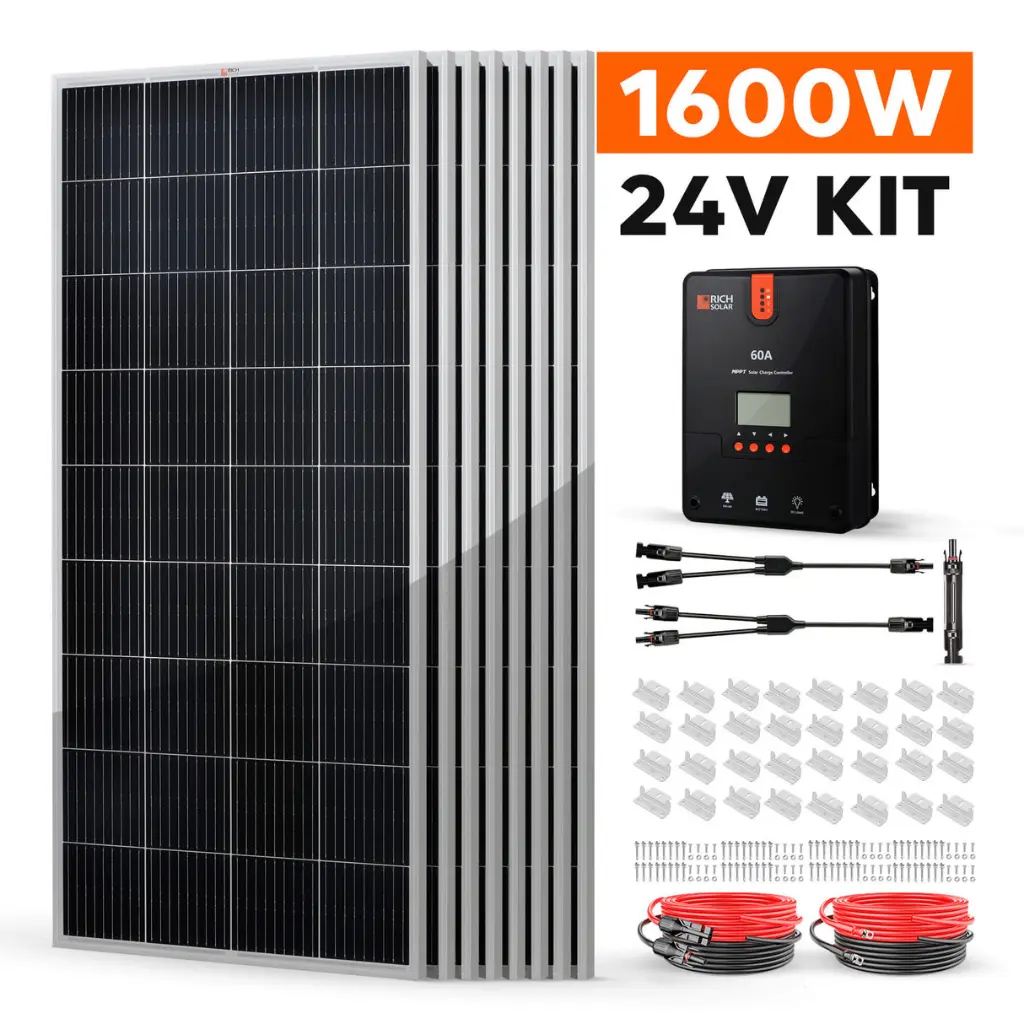

Rich Solar 1600 Watt Solar Panel Kit with 60A MPPT Controller
Note:Ā Processing time can take between 1-3 business days. Delivery between 3-5 business days.
Our largest 24V kit contains 8 high-efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat or trailer!
Package Includes:
Ā
 8 x 200 Watt Monocrystalline Solar Panel -Maximum Power(Pmax): 200W -Maximum Power Voltage(Vmp): 20.4V -Maximum Power Current(Imp): 9.80A -Open Circuit Voltage(Voc): 24.3V -Short Circuit Current(Isc): 10.2A -Maximum System Voltage(Vmax): 1000VDC -Temperature Range: -Max Series Fuse Rating: 15A -Weight: 26.5 lbs -Dimensions: 58.7 x 26.8 x 1.4 in |
 1 x 60 MPPT Solar Charge Controller -Rated Battery Current: 60A -Rated Load Current: 20A -Max Solar Input Voltage: 150V -Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V -Charge Circuit Voltage Drop: -Discharge Circuit Voltage Drop: -Operating Temperature: -Max Terminal Size: 4AWG -Overall Dimension: 11.2 x 8.1 x 4.0 in. Net Weight: 7.9 lb |
 1 x 20' #10 Gauge Solar Cable(Black and Red) -Wire Gauge: 10AWG -Length: 20 feet -Rating Voltage: DC: 1.8KV/AC: 0.6~1KV -Waterproof: IP65 -Fire Rated: IEC60332-1 -Insulation Material: TPE -Contact Material: Tinned Copper -Temperature Range: -Service Life: >25 Years |
 1 x 10' #4 Gauge Battery Cable -100% Pure Copper -2AWG -4 Feet |
|---|---|---|---|
 8 x Mounting Z Brackets(One Set of 4) -Ideal for rigid solar panels -Anodized Aluminum -Easy to use -Compatible with all RICH SOLAR Solar Panels -Firmly and Safely mount solar panels to RVs, trailers, boats or yachts and any flat surface |
 1 x 30A Inline Fuse Holder with Fuse -Rated Current: 10A/15A/20A/30A -Degree of Protection: IP2*IP67 -Rated Voltage: 1000V DC -Flame Class: UL94 - V0 -Test Voltage: 6000V(50Hz,1min) -Safety Class: II -Overvoltage Category: CATIII |
#1 x Y Branch Parallel Adapters |
Ā
- High-Efficiency Solar Panel
With the highest grade monocrystalline solar cells for optimal output, our 200-watt panel is treated with an anti-reflective coating to maximize light absorption.
- Simple Installation
Installation is a breeze with our pre-assembled wiring harness that doesnāt require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades, or additions simple and easyā¦ just plug in and go!
- Ā Reliable and Convenient
The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.
Ā
- 25-Year Output Warranty
Buy with confidence knowing that your solar investment will last for the long haul.
200 Watt Solar Panel Specifications
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 20.4V |
| Maximum Power Current(Imp) | 9.80A |
| Open Circuit Voltage(Voc) | 24.3V |
| Short Circuit Current(Isc) | 10.2A |
| Weight | 26.5 lbs |
| Dimensions | 58.7 x 26.8 x 1.4 in |
| Warranty | 25 years output warranty |
Ā
How Efficient are Monocrystalline Solar Panels?
