Rich Solar 20 Amp MPPT Solar Charge Controller

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

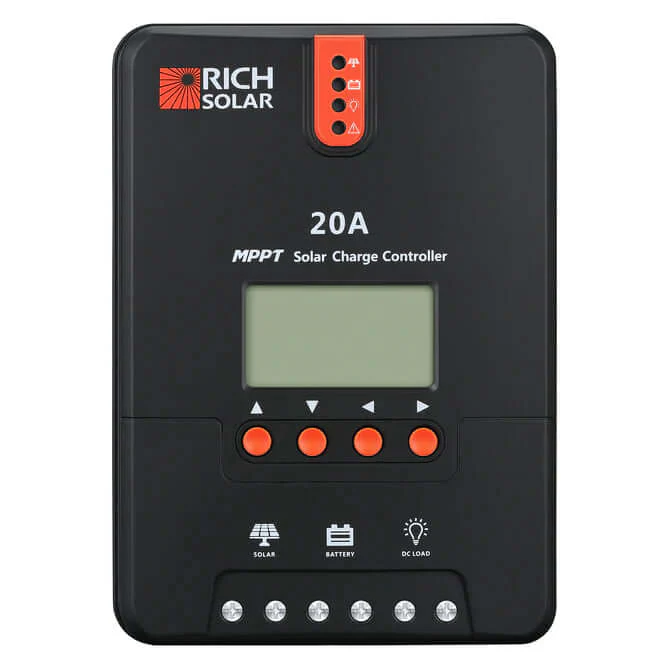

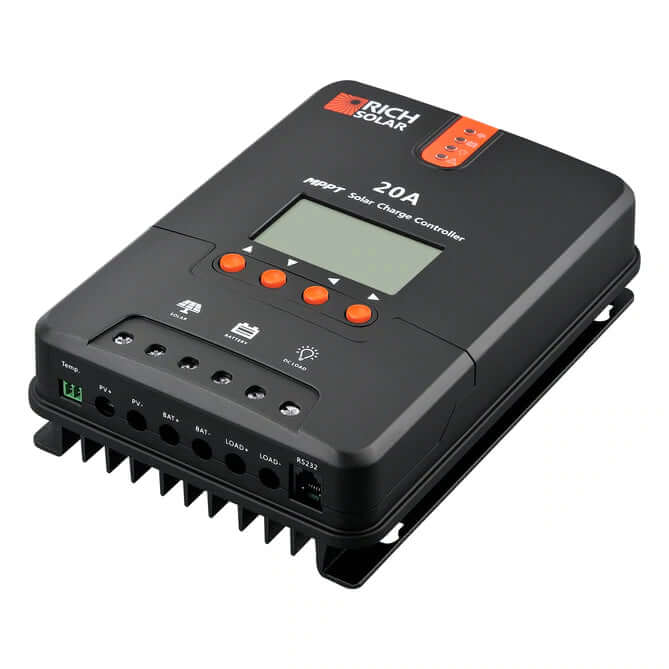

Rich Solar 20 Amp MPPT Solar Charge Controller

Rich Solar 20 Amp MPPT Solar Charge Controller

Note:Ā Processing time can take between 1-3 business days. Delivery between 3-5 business days.

Features

  • Automatically detects 12V or 24V DC system voltages
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
  • Features diverse load control; also capable of charging over-discharged lithium batteries

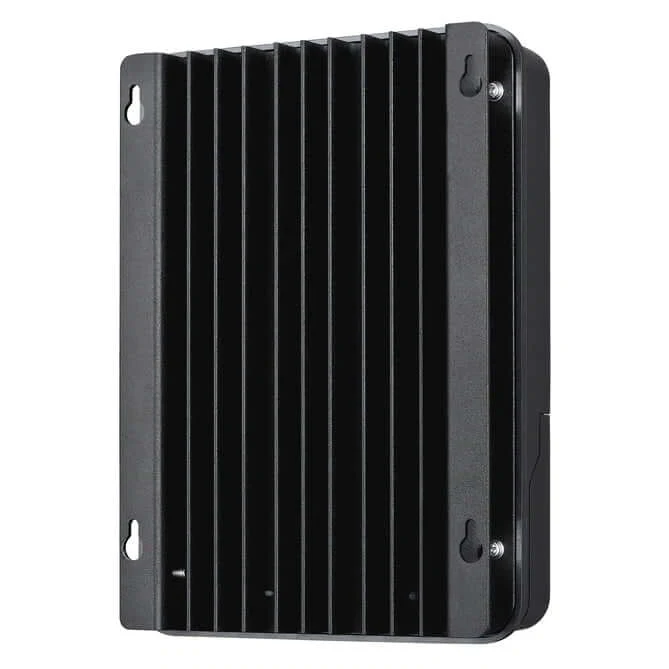

  • Die-cast aluminum design allows for efficient heat dissipation
  • RS232 port to communicate with BT-1 Bluetooth module.

Specifications

  • Nominal System Voltage: 12V/24V Auto RecognitionĀ
  • Rated Battery Current: 20A
  • Rated Load Current: 20AĀ
  • Max. PV Input Short Current: 25A
  • Max. Battery Voltage: 32VĀ
  • Max Solar Input Voltage: 100 VDC
  • Mounting Oval: 0.30 x 0.18 inĀ
  • Net Weight: 3.08 lb
  • Discharge Circuit Voltage Drop: ā‰¤ 0.15VĀ
  • Overall Dimension: 8.27 x 5.94 x 2.34 in

Download The User Manual Here

Ā
Solar Charge Controller Comparison
Rated Battery Current: 20A 40A 60A
Rated Load Current: 20A 20A 20A
Max. PV Input Short Current: 25A 50A 75A
Max Battery Voltage: 32V 32V 32V
Max Solar Input Voltage: 100 VDC 100 VDC 150 VDC
Net Weight: 3.08 lb 4.41 lb 7.9 lb
Discharge Circuit Voltage Drop: ā‰¤0.15V ā‰¤0.15V ā‰¤0.15V
Overall Dimension: 8.27 x 5.94 x 2.34in 9.37 x 6.81 x 2.85 in 11.2 x 8.1 x 4.0 in

    $34.30

    Original: $97.99

    -65%
    Rich Solar 20 Amp MPPT Solar Charge Controllerā€”

    $97.99

    $34.30

    Product Information

    Shipping & Returns

    Description

    Note:Ā Processing time can take between 1-3 business days. Delivery between 3-5 business days.

    Features

    • Automatically detects 12V or 24V DC system voltages
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
    • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
    • Features diverse load control; also capable of charging over-discharged lithium batteries
    • Die-cast aluminum design allows for efficient heat dissipation
    • RS232 port to communicate with BT-1 Bluetooth module.

    Specifications

    • Nominal System Voltage: 12V/24V Auto RecognitionĀ
    • Rated Battery Current: 20A
    • Rated Load Current: 20AĀ
    • Max. PV Input Short Current: 25A
    • Max. Battery Voltage: 32VĀ
    • Max Solar Input Voltage: 100 VDC
    • Mounting Oval: 0.30 x 0.18 inĀ
    • Net Weight: 3.08 lb
    • Discharge Circuit Voltage Drop: ā‰¤ 0.15VĀ
    • Overall Dimension: 8.27 x 5.94 x 2.34 in

    Download The User Manual Here

    Ā
    Solar Charge Controller Comparison
    Rated Battery Current: 20A 40A 60A
    Rated Load Current: 20A 20A 20A
    Max. PV Input Short Current: 25A 50A 75A
    Max Battery Voltage: 32V 32V 32V
    Max Solar Input Voltage: 100 VDC 100 VDC 150 VDC
    Net Weight: 3.08 lb 4.41 lb 7.9 lb
    Discharge Circuit Voltage Drop: ā‰¤0.15V ā‰¤0.15V ā‰¤0.15V
    Overall Dimension: 8.27 x 5.94 x 2.34in 9.37 x 6.81 x 2.85 in 11.2 x 8.1 x 4.0 in
