Rich Solar 200 Watt Complete Solar Kit
Note:Ā Processing time can take between 1-3 business days. Delivery between 3-5 business days.

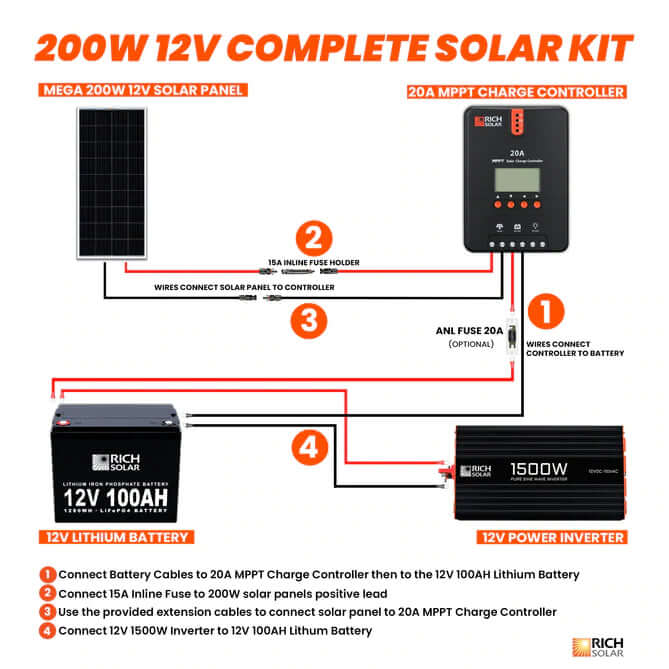

Our 200W 12V complete kit comes with all the products and components you need to start harnessing, storing and using the energy of the sun. This kit includes one high-efficiency 200W Monocrystalline panel with 9 busbars, 20A MPPT controller, 1500W 12V inverter, and a 100 AH 12V Lithium battery. Install this on your RV or tiny home and start your solar adventure today!
The 200 Watt Complete Kit Includes:
 1 x 200W 12V Panels(RS-M200) -Max Power(Pmax): 200W -Maximum Power Voltage(Vmp): 20.4V -Maximum Power Current(Imp): 9.80A -Open Circuit Voltage(Voc): 24.3V -Short Circuit Current(Isc): 10.2A -Maximum System Voltage(Vmax): 1000VDC -Temperature Range: -Max Series Fuse Rating: 15A -Weight: 26.5 lbs -Dimensions: 58.7 x 26.8 x 1.4 in |
 1 x Z Brackets -Ideal for rigid solar panels -Anodize aluminum -Easy to use -Compatible with all RICH SOLAR Solar panel -Firmly and safely mount solar panels to RVs, trailers, boats or yacht and any flat surface |
1x 20A MPPT Charge Controller Nominal System Voltage: 12V/24V Auto Recognition Rated Battery Current: 20A Rated Load Current: 20A Max. PV Input Short Current: 25A Max. Battery Voltage: 32V Max Solar Input Voltage: 100 VDC Mounting Oval: 0.30 x 0.18 in Net Weight: 3.08 lb Discharge Circuit Voltage Drop: ā¤ 0.15V Overall Dimension: 8.27 x 5.94 x 2.34 in |
1x 100AH 12V Lithium Battery Operating Voltage: 12.8 V Capacity: 100 Ah Continuous Charge Current: 50A Continuous Discharge Current: 100A Over Voltage Shutdown: 15.6 +/-0.2V Discharge Cut-off Voltage: 8V =/- 0.5V Self Discharge (stored at 50% SOC): < 3%/month Waterproof: IP65 |
|---|---|---|---|
|
1x 1500W 12V Inverter Input: DC 12V Output: 100 ā 127V AC 60HZ Output power: 1500W Surge power: 3000W |
 1 x 30' 10 AWG Solar Cable Set (Panel to Control) -Wire Gauge: 10AWG -Length: 30 feet -Rating Voltage: DC: 1.8KV / AC: 0.6~1KV -Waterproof: IP65 -Fire Rated: IEC60332-1 -Insulation Material: TPE -Contact Material: Tinned Copper -Temperature Range: -Service Life: > 25 years |
1x 10ā 10 AWG Battery Cable SetĀ Length: 10 feet
|
 1 x 15A Inline Fuse Holder -Rated Current: 10A/15A/20A/30A -Degree of Protection: IP2*/IP67 -Rated Voltage: 1000V DC -Flame Class: UL94 - V0 -Test Voltage: 6000V(50Hz,1 min) -Safety Class: II -Overvoltage Category: CATIII -Suitable Connector: Solar Connector |
